лагер 6804 ZZ
Арт.№: 72300
1 от 1
Безплатна доставка над
150.00
лв.
/
76.69
€
ППЦ:
лв.
лв.
9.90
лв.
/
5.06
€
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни

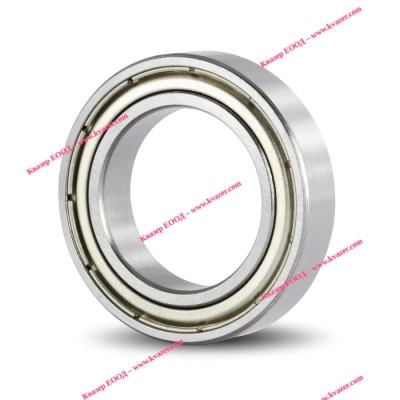

Характеристики лагер 6804 ZZ, KG bearing
Tънък високоскоростен сачмен радиален лагер.
- Производител: Kugellager-Express GmbH
- Вътрешен диаметър "d": 20мм;
- Външен диаметър "D": 32мм;
- Ширина "B": 7мм;
- Тип на затваряне: Двустранна метална капсуловка;
Информация
Deep Groove Ball Bearing 6804 / 61804 ZZ / 2Z 20x32x7 mm
Very narrow, very light and with extremely good spinning characteristics. The deep groove ball bearing 6804-ZZ / 2Z is very narrow and can also be used with limited space.
Technical Data
- Inside Ø (mm): 20
- Outside Ø (mm): 32
- Width (mm): 7
- Static radial load rating (N): 2390
- Dynamic radial load rating (N): 4020
- Limiting speed (1/min): 21000
- max. Operating Temperature: +120°C
- min. Operating Temperature: -20°C
- Tolerance for inside Ø (mm): 0/-0,01
- Tolerance for outside Ø (mm): 0/-0,011
- Tolerance for width (mm): 0/-0,12
- Bore: cylindrical
- Extended Inner Ring: no
- Tolerance Class: ABEC 1 / P0
- Internal Clearance: CN (Standard)
- Noise and vibration testing: Class V
- Seal: ZZ
- Ring Material: Rolling Bearing Steel
- Rolling Element Material: Rolling Bearing Steel
- Cage Material: Sheet Steel
- Sealing material: Sheet Steel
- Type of lubrication: greased
- Lifetime lubricated: yes
- Magnetic: yes
- Norm: DIN 625-1
- Item weight: 18 g
