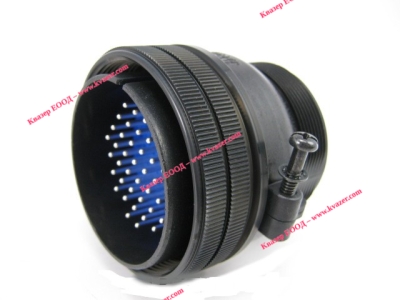

Кръгъл мъжки съединител 48pin MS3106B36-10P
Арт.№: 49925
1 от 3
Безплатна доставка над
с куриер Спиди
76.69
€
/
149.99
лв.
ППЦ:
€
€
37.8356
€
/
74.00
лв.
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики MS3106B36-10P JAE (Japan Aviation Electronics Industry, Ltd.)
Straight Cable Plug 48 Pin - Solder Contacts Trivalent Chromate Plating
Информация
- Product Name: N/MS3106B36-10P
- RoHS compliant: Yes
- Series Name: N/MS Series
- Connector types: Plug
- Number of positions: 48
- Connector styles: Straight
- Accessory type
- Contact shape (Mating part): Pin
- Wire termination method: Soldering
- Coupling styles: Threaded
- Contact arrangement code: 36-10
- Shell size: 36
- Contact size * No. of contacts: #16*48
- Contact size: #16
- Applicable wire size (mm2 max.): 1.25
- Applicable wire (AWG No.): #16 AWG
- Finish of contact in contact area: Silver plating
- Rated current (A max.): 13
- Total current rating (A max.): 124.8
- Dielectric withstanding voltage (VACr.m.s. 1minute): 2000
- Insulation resistance (megohms min.): 5000
- Contact resistance (milliohms max.):
- Waterproof: None waterproof
- Operating temperature range (Deg. C):-55 to +125
- Alternative insert position (deg.: 0
