Кръгъл мъжки съединител 3pin AMPHENOL MS3106A16-10P, винтово заключване

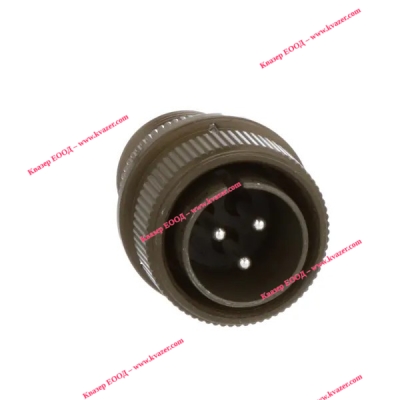

Amphenol MS3106A16-10P Connector straight plug class a size 16 3 #12 solder pin contact olive drab

• Angle: Straight Degree(s)
• Contact Configuration: 3#12
• Contact Plating: Silver
• Contact Type: Pin
• Current Rating: 23 A
• Dielectric Material: Neoprene
• Gender: Cable Plug
• Housing Finish: Olive Drab Cadmium
• Housing Material: Aluminum Alloy
• Housing Type: Metal
• Insert Arrangement: 16-10
• Mating Type: Threaded
• MIL Type: MIL-DTL-5015
• Number of Contacts: 3
• Primary Type: MIL/Aero
• Series: MS 5015 Series
• Shell Size: 16 in
• Special Features: Single Key/Keyway Shell Polarization
• Strain Relief: Solid
• Termination: Solder
• Type: 5015 MIL Spec
• Voltage Rating: 500 V ; 700 V
• Wire Size: 12 AWG
