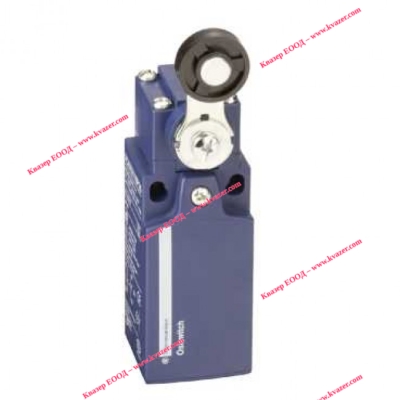

Краен изключвател XCKN2118P20 NO+NC AC15-240V 3A

Compact Limit Switches
Compact switches for light-duty applications

• IEC standard EN50047
• Slim body has double insulated plastic non modular enclosure.
• Metal head and level arms
• SPDT: NEMA A300
• Meets IEC 947-5-1 for positive opening contacts
• NEMA Types: 1, 4 (indoor), 12
• IEC Types: IP65
• -13°F to +158°F (-25°C to +70°C)

Specifications

Body Style/Type IEC OsiSense Limit Switches XCKN Light Duty Monolithic 30mm Plastic Body Head Type Rotary, Thermoplastic roller lever, track: 24/40mm Lever Arms Thermoplastic roller lever, track: 24/40mm Body with Contact Type 2-pole N.O./N.C. snap action Conduit Thread ISO M20x1 Enclosure Rating NEMA 12, 4X Indoor; IP65 Contact Configuration 1 N.O./1 N.C. Contact Operation Snap Action Ampere Rating Continuous 10A Positive Opening Yes Maximum Voltage Rating 240VAC/250VDC Actuation CW and CCW Actuator Action Momentary Lever Arm Length 35.5 mm Roller Dimension 19 x 5.5mm Roller Material Thermoplastic Operating Torque/Force 14.16 Inch-Ounces (0.10Nm) Max. Actuation Speed 1.5 m/s Approvals UL # E164353 - CSA # 164581 - CE Marked Conforming to Standards CENELEC EN 50047 Body Material Plastic Head Material Plastic Connection Type Conduit Entrance (ISO M20x1.5) Terminal Type Screw Clamp RoHS Yes Operating Temperature Range -13 to 158 ° F Shock Resistance 50G Vibration Resistance 25G Weight 0.085 kg (0.190 lb)
