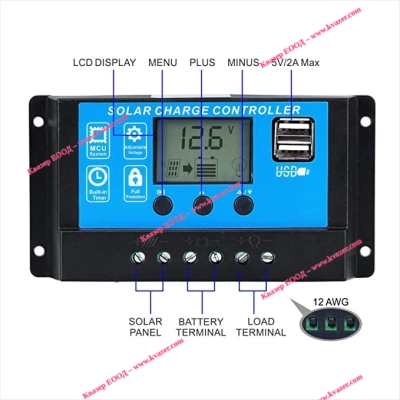

Контролер за Слънчев Панел 12V/24V-10A, USB изход 5V
Соларен контролер за работа с 12 и 24V консуматори и акумулатори
Информация
Контролер за Слънчев Панел 12V/24V-10A, USB изход 5V
- USB изход 5V
- Цифров дисплей показващ режими на работа на консуматора(време на включване и изключване на консуматор)
- Максимален товар: 10A
- Светодиодни индикатори за статуса на панела, акумулатора и консуматора
- Дигитален микроконтролер
- Тайминг контрол
- Температурна компенсация на заряда
- Защита срущу късо съединенине
- Защита срещу пренапрежение
- Изключване на консуматора при 11.1V
- Защита срещу обръщане на поляритета
☀10A SOLAR CHARGE CONTROLLER: ☀Rated Discharge Current: 10A; USB Output Voltage: 5V/2A; Battery Voltage: 12V/24V auto. Adjustable power rate with dual USB ports; Please notice the controller might be power off if the battery voltage is too low.
☀SOLAR CONTROLLER FUNCTIONALITY:☀ Build-in industrial micro controller, big LCD display and full 3-stage PWM charge managrment.
☀EASY TO USE: ☀Over-current and short-circuit protection, inverse connection protection, low voltage and overcharge protection. Comes with a display that can clearly indicate the status and data, it can be conveniently switched modes and parameter configuration, suitable for home, industrial, commercial etc.
☀GOOD HEAT DISSIPATION: ☀Dual reverse current protection, low heat production. ALL electronic components generate heat when they are running, it is better to shelter them for better heat dissipation, avoid direct sunlight exposure or damp place.
Product Description
Package Includes: 1 x 10A Controller. 1 x User Manual
Product Specification:
Type: Solar Charge Controller 10A
Screen: LCD display screen
Battery Voltage: 12V / 24V
Charge Current: 10A
Working Temperature: -35 to 60 degree Celsius
Self consume: 10mA
Float Charge: 13.7V
Discharge stop: 10.7V
Discharge reconnect: 12.6V
USB output: 5V/2A
Application: Home, Industrial, Commercial
Features:
(1)Automatically manage the working of solar system.
(2)Dual USB supply power to two mobile phones and other devices that require max 5V 2A power.
(3)Build-in short-circuit protection, open-circuit protection, reverse protection, over-load protection.
(4)Prolong the battery life cycle and keep the load work well. Easy to set up and operate.
(5)Fit for Lead-acid batteries(OPEN, AGM, GEL) with multiple load modes.
Load Mode
[24H] Load output 24 hours
[1-23H] Load on after sunset and closed after, setting hours
[0H] Dusk to dawn
Common Q&A
Q: How to install it?
A: (1)Battery --->(2)DC load ---> (3)Solar panels
Q: Why the LCD screen become blank?
A: When the battery voltage is too low, the controller will stop to output(≦ 8V, controller turns itself off, LCD is blank, ≦ 10.7V, 12V output ports are not available); after the solar panels charging, it will re-output when the battery will return to 12.6V.
Q: What battery type is this controller supported?
A: The regulator is only suitable for lead acid batteries:OPEN, AGM, GEL, not for nickel hydride, lithium, ions, or other batteries.
Note
<1> Old batteries may be degraded the capacity after hundereds of cycles, easily drop lower than 8V, which results in the controller will be shut off (LCD screen become totally “DEAD”).
<2>Connect the inverter (DC / AC) to the battery. DO NOT connect to the solar controller.
