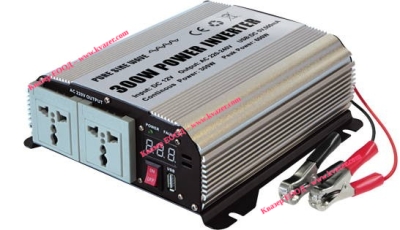

ИНВЕРТОР DC/AC PSW-8300 12V-220V 300W


ИНВЕРТОР DC/AC PSW-8300 12V-220V 300W със синусоидален изход + usb
Pure Sine Wave Inverter 300w Continuous, 12v to 230v Twin UK + USB
Информация
Инвертор пълна синусоида
12V вход - AC220±10% изход
Инверторът преобразува напрежение от 12V към 220V.
300W пълен синусоидален инвертор
аларма: DC10.2-10.8V изтoщен акумулатор
Влажност на въздуха: 0%~95%
Ефективност: 80%~90%
CE, ISO9001 одобрен
Функции:
- Преобразува напрежение 12V към 220V . По този начин получавате възможност да ползвате битови уреди /компютър, лампа, телевизор и др/ работещи на 220 Vac (включително и роторни консуматори), навсякъде където имате достъп до акумулаторна батерия с достатъчна мощност.
************************************
This is a pure sine wave 12v / 230v inverter in the GYS premium PSW range and is rated at 300 watts continuous.
There are three models in the PSW range with continuous outputs of 300w, 600w and 1500w - and peak powers of double those levels. This premium range of Pure Sine Wave inverters delivers a much higher quality output compared to Modified Sine Wave inverters and is suitable for all appliances including high quality and sensitive devices.
Their output quality is similar to or better than that of normal domestic mains power supplies.
The advanced microprocessor design means that they are small and light with a stable output and high conversion efficiency. They are also quiet: intelligent circuitry means that the ventilation fans do not come on unless the inverter is working at higher outputs and is becoming warmer.
The inverters feature a digital display panel which switches automatically between readouts of the input source voltage (input voltage from your battery) and the watts being drawn by the 230v appliances attached to the output sockets.
The competitive pricing means that it is now far easier on the pocket to opt for the benefits of a pure sine inverter - and be sure that it will safely and reliably power any 230v device within its output capacity.
The inverter is supplied with connector leads which must be attached directly to the battery; they include an earth connection lead to attach to a vehicle body earth point.
The 230v output is via two UK-type sockets and in addition there is a 5v USB power socket rated at 500mA
GYS PSW 8300 300w pure sine wave inverter at www.campervanstuff.com
Features - high quality output and advanced design
Pure sine wave 230v output up to 300w continuous 600w peak.
Light, compact and versatile: high quality output supply is suitable for powering any 230v device within the inverter's wattage capacity.
Two 230v sockets plus a 5v USB power socket (500mA)
Thermal protection, intelligent fan which only runs when additional cooling is needed.
Protected against overload and short-circuits
Protected against over and under voltage
Specifications
Input voltage DC: 11v - 15v
Output AC: 230v (+/- 10%); socket multi, including twin UK standard 3-pin
Continuous power output : 300w
Peak/spike power output: 600w
Output frequency: 50Hz +/- 3Hz
Output USB DC: 5v, 500mA
Digital display: Input voltage/load
Output waveform: pure sine wave
Distortion rate: <3%
Output efficiency: >85%
12v input No-Load current: <0.45amp
Input under voltage alarm: 10.2v - 10.8v
Input under voltage shut down: 9.2v - 9.8v
Input over voltage shut down: 15v - 16v
Overload shut down: 360w - 390w
Fuse: 20A x 2
Working temperature: 5 - 35 deg.C
Size approx cms: 18 (+ cable terminals protrude 2cm) x 18 x 7
Weight: 1.2kg
Certification: CE
