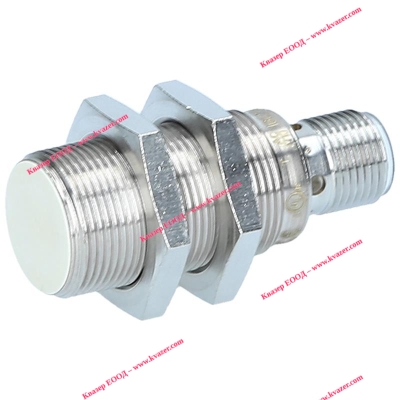

Индуктивен датчик IGC204 - IGB3008BBPKG//US-104
Арт.№: 60531
1 от 1
Безплатна доставка над
с куриер Спиди
76.69
€
/
149.99
лв.
ППЦ:
€
€
96.6342
€
/
189.0001
лв.
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики Индуктивен датчик IGC204 - IGB3008BBPKG//US-104
- Inductive sensor M18 x 1
- Sn = 8 mm [f]
- NO
- PNP
- Protection rating: IP68 "coolant"
- Temperature range: -25...70 °C
- Switching frequency: 400 Hz
- M12 connector
- EAN: 4021179101530
Информация
GC204 - IGB3008BBPKG//US-104
General data
Type: Cylindrical and threaded
Installation: Flush
Sensing range: 8 mm
Function display: Yes
Electrical data
- Operating voltage min.: 10 V
- Operating voltage max.: 36 V
- Type of voltage: DC
- Output: PNP
- Output function: NO
- Output current max.: 100 mA
- Switching frequency: 400
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
Mechanical data
- Size: M18 x 1
- Total length: 46 mm
- Connection: M12 connector
- Material of the sensing face: LCP
- Housing material: Brass plated with white bronze
