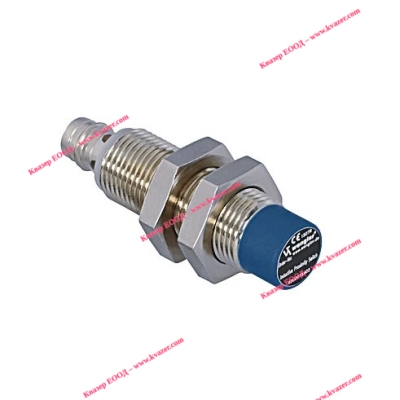

Индуктивен датчик IB060NM46VD8 Wenglor
Арт.№: 71728
1 от 1
Безплатна доставка над
150.00
лв.
/
76.69
€
ППЦ:
лв.
лв.
69.00
лв.
/
35.28
€
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики Индуктивен датчик IB060NM46VD8 Wenglor
INDUCTIVE PROXIMITY SWITCH,NON-FLUSH, HOUSING LENGTH 46 MM, RANGE 6 MM.
Информация
Inductive Data | |
|---|---|
| Switching Distance | 6 mm |
| Correction Factors Stainless Steel V2A/CuZn/Al | 0,76/0,54/0,54 |
| Mounting | Non-flush |
| Switching Hysteresis | < 15 % |
Electrical Data | |
|---|---|
| Supply Voltage | 10 ... 30 V DC |
| Current Consumption (Ub = 24 V) | < 6 mA |
| Switching Frequency | 600 Hz |
| Temperature Drift | < 10 % |
| Temperature Range | -25 ... 80 °C |
| Switching Output Voltage Drop | < 2.5 V |
| Switching Output/Switching Current | 200 mA |
| Residual Current Switching Output | < 100 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
Mechanical Data | |
|---|---|
| Housing Material | Brass, nickel-plated |
| Full Encapsulation | yes |
| Degree of Protection | IP67 |
| Connection | M8 × 1; 3-pin |
| Weight | 30 g |
Safety-relevant Data | |
|---|---|
| MTTFd (EN ISO 13849-1) | 5,246.99 a |
General Data | |
|---|---|
| Packaging unit | 1 Piece |
Output | |
|---|---|
| PNP NC | yes |
