Индуктивен датчик, екраниран, M30mm, NC 20-250V AC AECO

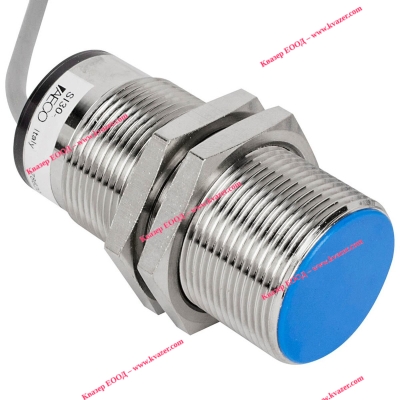

AECO Inductive Proximity Sensor, 30 mm diameter, nickel-plated brass, 20-250 VAC, shielded, 10 mm sensing distance, N.C. output, 2 meter cable

• Nickel-plated brass housing
• 20-250VAC operating voltage
• IP67 Protective Rating
• 2 meter cable
• LED status indicator

GENERAL SPECIFICATIONS

• Operating Voltage: 20-250VAC
• Hysteresis: <10% sensing distance
• Switching Frequency: 12Hz
• Repeatability: ≤3% sensind distance
• Max. Output Current: 300mA
• Min. Output Current: 5mA
• Max. peak Current for 20ms: 1.5A
• Residual Current: <1mA
• Voltage Drop (Sensor ON): <6V
• Visual Indication: LED
• Temperature Range: -13° to 158°F (-25° to 70°C)
• Protection Rating: IP67
• Housing Material: Nickel-plated brass
