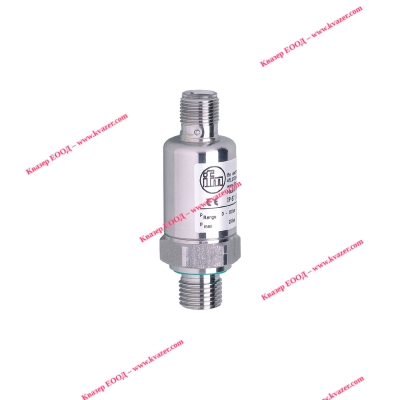

IFM PT9544 / PT-010-RBG14-B-DVG/US/ /W
Арт.№: 71640
1 от 1
Безплатна доставка над
с куриер Спиди
150.00
лв.
/
76.69
€
ППЦ:
лв.
лв.
450.90
лв.
/
230.54
€
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики IFM PT9544 / PT-010-RBG14-B-DVG/US/ /W
- Reliable detection of system pressure in industrial applications
- High shock and vibration resistance
- Excellent repeatability and low linearity error
- Lifespan of more than 50 million pressure cycles
- Compact and robust stainless steel housing for use where space is restricted
Информация
IFM PT9544 PT-010-RBG14-B-DVG/US/ /W
Product characteristics
| Number of inputs and outputs | Number of analog outputs: 1 | ||||
| Measuring range |
|
||||
| Process connection | threaded connection G 1/4 external thread |
Application
| Application | for industrial applications | |||
| Media | liquids and gases | |||
| Medium temperature[°C] | -25...90 | |||
| Min. bursting pressure |
|
|||
| Pressure rating |
|
|||
| Type of pressure | relative pressure |
Electrical data
| Operating voltage[V] | 16...36 DC |
| Current consumption[mA] | < 6 |
| Min. insulation resistance[MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of analog outputs: 1 |
Outputs
| Total number of outputs | 1 |
| Output signal | analog signal |
| Number of analog outputs | 1 |
| Analog voltage output[V] | 0...10 |
| Min. load resistance[Ω] | 2000 |
Measuring/setting range
| Measuring range |
|
Accuracy / deviations
| Repeatability[% of the span] | < ± 0,1; (with temperature fluctuations < 10 K) |
| Characteristics deviation[% of the span] | < ± 1,0; (incl. drift due to tightening torque, zero and span error) |
| Linearity deviation[% of the span] | < ± 0,25 (BFSL) / < ± 0,5 (LS) |
| Hysteresis deviation[% of the span] | < ± 0,2 |
| Long-term stability[% of the span] | < ± 0,1; (per 6 months) |
| Temperature coefficient zero point[% of the span / 10 K] | < ± 0,1; (-25...90 °C) |
| Temperature coefficient span[% of the span / 10 K] | < ± 0,1; (-25...90 °C) |
Reaction times
| Step response time analog output[ms] | 3 |
Operating conditions
| Ambient temperature[°C] | -25...90 |
| Storage temperature[°C] | -40...100 |
| Protection | IP 67; IP 69K |
Tests / approvals
| EMC |
|
||||||||||
| Shock resistance |
|
||||||||||
| Vibration resistance |
|
||||||||||
| MTTF[years] | 1116 | ||||||||||
| Pressure equipment directive | sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
Mechanical data
| Weight[g] | 85 |
| Housing | tubular |
| Dimensions[mm] | Ø 22 / L = 65.1 |
| Material | stainless steel (1.4404 / 316L); PA |
| Materials (wetted parts) | stainless steel (1.4404 / 316L); FKM |
| Min. pressure cycles | 50 million |
| Process connection | threaded connection G 1/4 external thread |
| Restrictor element integrated | no (can be retrofitted) |
Remarks
| Remarks |
|
||
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
