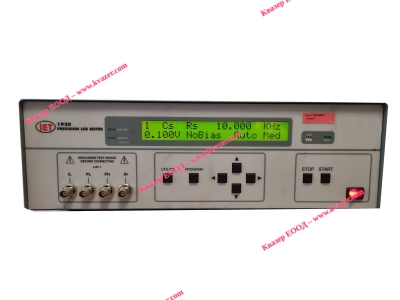

IET 1920 PRECISION LCR METER

IET / Quadtech 1920 LCR Meter, 20 Hz to 1 MHz

The QuadTech / IET Labs 1920 1 MHz LCR Meter is the most popular and designed to perform capacitance and impedance measurements on a variety of electronic components and materials over a frequency range from 20 Hz to 1 MHz. The 1920 features programmable bias voltage from 1 mV to 2 V for biasing capacitors and other semiconductor devices during measurements.

Features:

• Frequency Range 20 Hz to 1 MHz
• 0.1% Basic Measurement Accuracy
• Measures 15 impedance parameters, dc resistance, voltage and current monitor
• Wide measurement range with 5 digit measurement resolution
• Four-terminal Kelvin connections to maintain measurement integrity
• AC test voltage programmable from 20 mV to 1 V
• DCR dc resistance
• Internal dc bias voltage, programmable from 1 mV to 2 V
• IET 1910 and 1920 LabView driver for IEEE-488.2 and RS-232
• AC test voltage programmable from 20 mV to 1 V
• CE marked
• 100-240 Vac, 50-60 Hz operation
• Weight: 17.6 lb; Size: 133 mm H x 432 mm W x 406 mm D
