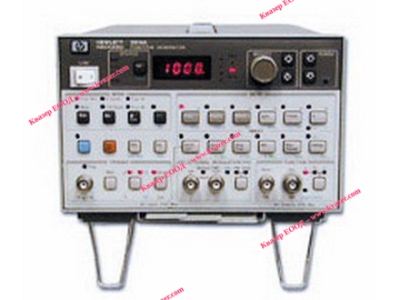

HP Agilent 3314A 20MHz, Функционален генератор, синусоидален генератор
The 3314A Function Generator is a generator with the precision and versatility to produce numerous waveforms. Its feature set includes accurate sine, square and triangle waves from 0.001Hz to 19.99MHz, 0.01 mV to 10 V p-p (50 ohms). Ramps and pulses are also available to 2MHz, using variable symmetry (5 to 95% range).
Малко употребяван.
Информация
• Lin/Log sweeps
• AM/FM/VCO
• Phase lock XN and ÷N
• Gate and counted burst
• 1/2 cycle mode
• Arbitrary waveform generator
The 3314A is a Function/Waveform Generator with the precision and versatility to produce numerous waveforms. Its feature set includes accurate sine, square, and triangle waves, with ramps and pulses available using variable symmetry. Additional features include counted bursts, gate, lin/log sweeps, AM, FM/VCO, dc offset, and phase lock. For increased versatility, the Arbitrary waveform mode allows a countless number of user defined waveforms. Since complete programmability is provided, all of these capabilities are available for ATE systems, as well as bench applications.
Download pdf datasheet
Информация за продукта в Adobe© PDF формат - HP Agilent 3314A 20MHz Function Generator, Waveform Generator
HP Agilent 3314A 20MHz, Функционален генератор, синусоидален генератор HP Agilent 3314A 20MHz DATA SHEET -
HP 3314A Function Generator Service Manual - Hewlett-Packard HP Agilent 3314A 20MHz • Manual Part No. 03314-90021
- HP 3314A Function Generator Service Manual - Hewlett-Packard
- Manual Part No. 03314-90021
- Microfiche Part No. 03314-90071
