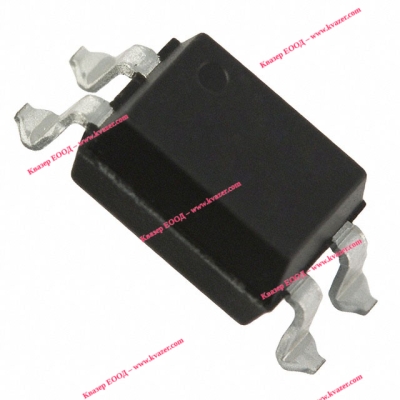

FOD817A smd
Арт.№: 48926
1 от 1
Безплатна доставка над
150.00
лв.
/
76.69
€
ППЦ:
лв.
лв.
0.90
лв.
/
0.46
€
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики FOD 817 A smd
- Configuration: 1 Channel
- Input Type: DC
- Maximum Collector Emitter Voltage: 70 V
- Maximum Collector Emitter Saturation Voltage: 0.2 V
- Isolation Voltage: 5000 Vrms
- Current Transfer Ratio: 160 %
- Maximum Forward Diode Voltage: 1.4 V
- Maximum Input Diode Current: 50 mA
- Maximum Collector Current: 50 mA
Информация
FOD 817 A smd
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min) 80% @ 5mA
- Current Transfer Ratio (Max) 160% @ 5mA
- Rise / Fall Time (Typ): 4µs, 3µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 70V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.2V
- Current - DC Forward (If) (Max): 50mA
- Vce Saturation (Max): 200mV
- Operating Temperature: -55°C ~ 110°C
- Mounting Type: Surface Mount
- Package / Case: 4-SMD, Gull Wing
- Supplier Device Package: 4-SMD
