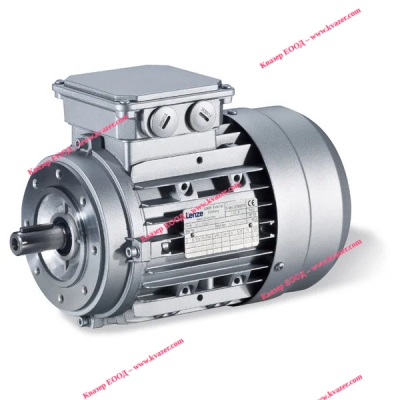

електродвигател LENZE Type MDEMABR080-42C0C Mat number: 15629202 1.1kW

Technical data

• Motor code: MDEMABR080-42C0C
• Kind of motor: MD 3-phase AC asyn. motor
• Rated voltage: 230 / 400 V +-10%
• Rated power: 1,1 kW
• Rated frequency: 50 Hz
• Rated current: 4,8 / 2,8 A
• Power factor: 0,8
• Rated speed: 1390 r/min
• Rated torque: 7,5 Nm
• Enclosure: IP55
• Temperature class: F
• Operating mode: S1
• Motor design: B9Q145
• Motor shaft dxl: Conical shaft
• Motor protection: TCO (Thermal contact, NC)
• Terminal box: In position 4
• Connection type: Standard
• Brake version: Spring-operated
• Motor brake - supply voltage: 230 V AC Rectifier 6-pole
• Brake design: not adjustable
• Brake rectifier: Yes with spark suppressor
• Brake size: 10
• Braking torque: 16 Nm
• Cooling: Integral fan
• Colour: Not coated
• Ratio 1st stage: 5,667
• Weight / unit: 11.800 KG
