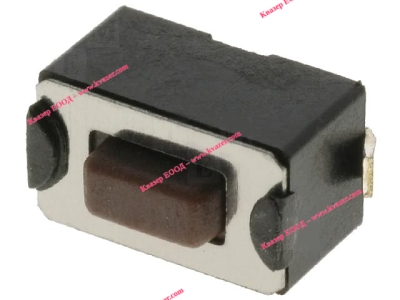

DTSM-32N-V-T/R Микро превключвател SMD SPST-NO размер 3.5x6mm 1.6N

DTSM-32N-V-T/R  -SMD, dimensions: 3.5x6mm, 1 NΩ

• single pole input key with an SPST-NΩ contact
• for SMD assembly
• very small dimensions
• data and signal technology, measuring and controlling, membrane keyboards
• switching voltage, max.: 12V DC
• switching voltage, max.: 50mA
• test voltage, 1min.: 250V AC
• operating life with switching capacity: 50'000 operations
• contact resistance, max.: 100mΩ
• insulation resistance, min.: 100MΩ/500V DC
• switching type: 1 NΩ contact
• operating force: 1.6N
• operating path: 0.25mm+0.2, -0.1
• insulation material: thermoplastic nylon, UL94V-0
• contact surface: spring steel, silver-plated
• solder temperature and durability, max.: 260°C for 5s
• operating temperature: -25...+70°C
