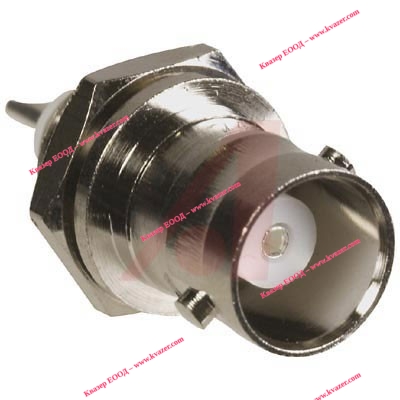

BNC съединител Amphenol RF UG-1094/U
Арт.№: 46098
1 от 1
Неналичен
Доставка и плащане
Добави в любими
Твоите любими продукти Сравни
Характеристики Connector, rf coaxial, bnc bulkhead recept, front mount, solder cup term, 50 ohm
- Impedance: 50ohm
- Body Style: Straight Bulkhead Jack
- Coaxial Termination: Solder
- ConnectorType: BNC Coaxial
- Connector: Mounting Panel
Разпродадени!
Информация
Angle : Straight
Application : True MIL
Contact Plating : Silver
Finish, Housing : Nickel
Gasket : Silicone Rubber
Impedance : 50 Ohms
Material, Contact : Brass (Male Contact) ⁄ Beryllium Copper⁄Phosphor Bronze (Female Contact)
Material, Dielectric : TFE/Styrene
Material, Housing : Brass
Mating Type : Bayonet
Mount Method : Front
Mounting Type : Bulkhead
Primary Type : BNC
Temperature, Operating : -65 to +165 °C (TFE Insulators) ⁄ -55 to +85 °C (Copolymer of Styrene)
Termination : Solder
Type : Panel Jack
Voltage, Rating : 500 V
