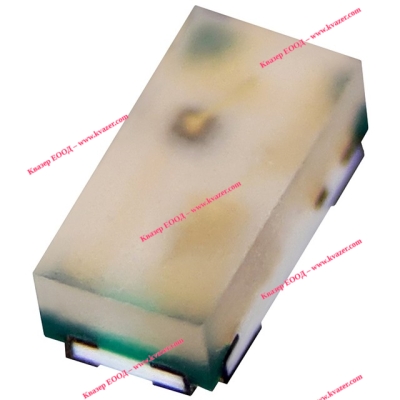

B2972USUG20D-000114 LED smd 0603
Арт.№: 70345
1 от 1
Безплатна доставка над
с куриер Спиди
76.69
€
/
149.99
лв.
ППЦ:
€
€
0.1534
€
/
0.30
лв.
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики B2972USUG20D-000114 светодиод smd 0603
Red, Yellow-Green 624nm Red, 571nm Yellow-Green LED Indication - Discrete 2V Red, 2.1V Yellow-Green 0603 (1608 Metric)
Информация
B2972USUG20D-000114
|
Color
|
Red, Yellow-Green
|
|
Configuration
|
Independent
|
|
Lens Color
|
-
|
|
Lens Transparency
|
Diffused
|
|
Millicandela Rating
|
71.5mcd Red, 45mcd Yellow-Green
|
|
Lens Style
|
Rectangle with Flat Top
|
|
Lens Size
|
1.60mm x 0.80mm
|
|
Voltage - Forward (Vf) (Typ)
|
2V Red, 2.1V Yellow-Green
|
|
Current - Test
|
20mA
|
|
Viewing Angle
|
140° Red, 160° Yellow-Green
|
|
Mounting Type
|
Surface Mount
|
|
Wavelength - Dominant
|
624nm Red, 571nm Yellow-Green
|
|
Wavelength - Peak
|
632nm Red, 573nm Yellow-Green
|
|
Features
|
-
|
|
Package / Case
|
0603 (1608 Metric)
|
|
Supplier Device Package
|
0603
|
|
Size / Dimension
|
1.60mm L x 0.80mm W
|
|
Height (Max)
|
0.60mm
|
