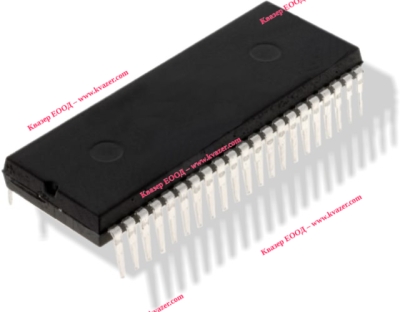

AN5600K
Арт.№: 7801
1 от 1
Безплатна доставка над
с куриер Спиди
150.00
лв.
/
76.69
€
ППЦ:
лв.
лв.
14.40
лв.
/
7.36
€
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики AN 5600 K
SDIP42 TV PAL/NTSC CHROMA PROCESSOR
Информация
Function :
- Chrominace
- Luminace
- Sync separator
- AFC
- Horizontal & Vertical sweep Generator
| Pin No. | Function | Voltage |
| 1. | Ground (-Ve supply voltage) | 0 |
| 2. | Crysal (filter) | 2.4 |
| 3. | Sub colour control | 3.8 |
| 4. | ACC filter | 5 |
| 5. | Chroma input | 2.6 |
| 6. | Contrast control | 3.3 |
| 7. | Chroma output | 7.3 |
| 8. | APC -1 | 10.5 |
| 9. | APC -2 | 10.5 |
| 10. | 5V Regulator supply | 5 |
| 11. | R-Y Colour Difference signal input | 3.1 |
| 12. | Colour killer countrol | 4.4 |
| 13. | B-Y Colour Difference signal input | 3.1 |
| 14. | Data planning | 0 |
| 15. | Video input signal -1 | 5.3 |
| 16. | Video input signal -2 | 5.3 |
| 17. | Picture control | 2.3 |
| 18. | Brightness control | 2.3 |
| 19. | Blue clamping | 9.7 |
| 20. | Green clamping | 9.8 |
| 21. | Green output | 3.2 |
| 22. | Green data input | 3.6 |
| 23. | Blue clamping | 3.7 |
| 24. | Blue output | 3.2 |
| 25. | Red output | 3.4 |
| 26. | Red clamping | 9.8 |
| 27. | Red data input | 3.6 |
| 28. | Sync separator | 8.5 |
| 29. | Positive (+Ve)supply voltage | 12 |
| 30. | Sync separator filter | 8 |
| 31. | Vertical output | 0.7 |
| 32. | Vertical feedback | 4.3 |
| 33. | Vertical hight control | 1 |
| 34. | Vertical hold | 5.8 |
| 35. | Vertical sync filter | 4.9 |
| 36. | Sand castle pulse | 1.5 |
| 37. | Flyback (blangking)pulse(50/60Hz) | 0.9 |
| 38. | Horizontal AFC | 4.7 |
| 39. | Horizontal oscillator (15625Hz) | 4.5 |
| 40. | Horizontal Hold | 3.3 |
| 41. | Horisontal output (15625Hz) | 1.8 |
| 42. | +B/8.5 V. (supply) | 8.4 |
