24C02 (smd) Two-Wire Serial EEPROM 2K (256 X 8)

Features
Low-voltage and Standard-voltage Operation
– 1.8 (VCC = 1.8V to 5.5V)
Operating Ambient Temperature: -40°C to
+85°C
 Internally Organized 256 X 8 (2K), 512 X 8
(4K)
wo-wire Serial Interface
Schmitt Trigger, Filtered Inputs for Noise
Suppression
Bidirectional Data Transfer Protocol
1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V)

Compatibility
Write Protect Pin for Hardware Data Protection
8-byte Page (2K), 16-byte Page (4K) Write
Modes
Partial Page Writes Allowed
Self-timed Write Cycle (5 ms max)
High-reliability
– Endurance: 1 Million Write Cycles
– Data Retention: 100 Years

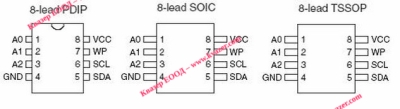

8-lead PDIP, 8-lead JEDEC SOIC and 8-lead
TSSOP Packages

General Description
The 24C02 / 24C04 provides 2048/4096 bits of
serial electrically erasable and programmable
read-only memory (EEPROM) organized as
256/512 words of 8 bits each The device is
optimized for use in many industrial and
commercial applications where low-power and
low-voltage operation are essential.

The 24C02 /24C04 is available in space-saving 8-lead PDIP,
8-lead JEDEC SOIC, and 8-lead TSSOP packages
and is accessed via a Two-wire serial interface. In
addition, the 24C02 / 24C04 is available in 1.8V
(1.8V to 5.5V) version.
