21WA4K0B130 24V DC електромагнитен вентил G1/2 0.2-16 bar
Арт.№: 72035
1 от 1
Безплатна доставка над
с куриер Спиди
150.00
лв.
/
76.69
€
ППЦ:
лв.
лв.
198.00
лв.
/
101.24
€
Валидност на промоцията
до
В наличност
Доставка и плащане
Резервирай
и вземи от Добави в любими
Твоите любими продукти Сравни
Характеристики 21WA4K0B130 24V DC магнет вентил G1/2 0.2-16 bar
Информация

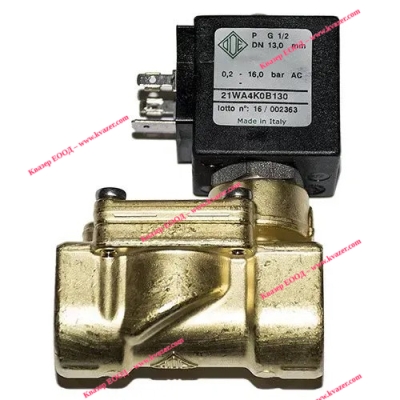

Solenoid valve ODE 21WA4KOB130 normally closed 1/2"
| Nominal diameter DN | 15 mm |
|---|---|
| Diameter in inches G | 1/2" |
| Diameter of a through hole | 13 mm |
| Maximum inlet pressure Pmax | 20 bar |
| Minimum differential pressure ΔPmin | 0.2 bar |
| Maximum differential pressure ΔPmax | 16 bar |
| Working environment | water, air, oil products, mineral oils |
| Working environment temperature | from -10°С to +90°С |
| Sealing | NBR (oil and petrol resistant rubber) |
| Type of valve | two-way |
| Design |
normally closed |
| Operating principle | indirect action |
| Body Material | composition metal |
| Body material grade | brass CW617N |
| Throughput Kv | 70 l/min |
| Joining | coupling |
| Mounting length | 66 mm |
| Coil Supply Voltage | 12V (DC/AC 50Hz), 24V (DC/AC 50Hz), 110V (DC/AC 50Hz), 220V (AC 50Hz), 380V (AC 50Hz) |
| Coil power | 8 W |
| Series | 21WA |
| Marking | 21WA4K0B130 |
| Manufacturer | ODE |
| Country of manufacturer | Italy |
