136PC15G220 HONEYWELL датчик за налягане 0-15PSI

136PC15G220 HONEYWELL MICRO SWITCH  PRESSURE SENSOR 0-15PSI

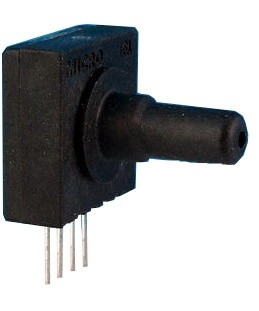

PRESSURE SENSOR 136PC15G220
trimmed plus thermistor (low sensitivity shift with temperature)

• Operating Pressure Range: 0 to 15psig
• Sensor Output1: Voltage
• Voltage Rating: 10-16V VDC
• Connection Size: 5.0mm
• External Length / Height: 21mm
• External Width: 16,3 mm
• Input Impedance: 6,8 kohm
• Offset Voltage: -2 +2mV
• Operating Temperature Max: 85°C
• Operating Temperature Min: -40°C
• Sensor Type: Pressure
• Series: 130PC
