Скеле CAGSAN S008
Ref: 50301
Професионално алуминиево скеле модел S008
- Модел: S008
- Максимална работна височина: 7,85 метра
- Тегло: 140кг
- Размер на платформата: 155/45см

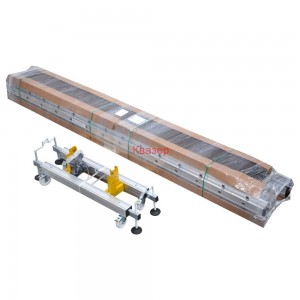

- Транспортен размер: 60/415/45см + 39x154x46см
- Притежава ролер система за лесно позициониране на различна височина
- Изключително лесна и ефективна система на сглобяване
- Със европейски сертификати за качество и безопасност
More info
Learn more about this product:
Full description
Скеле алуминиево професионално модел S008
При поръчка от страницата, транспорта се заплаща допълнително, според тарифата на куриера и опцията за безплатна доставка не е валидна!

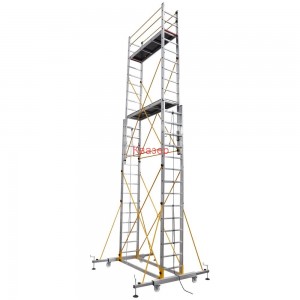

S008 - 15 Step Double Part Scaffoldings
Double Part Aluminium Scaffoldings serve in diffrent areas thanks to its collapsible structure. System established on aluminium construction is strengthened with steel stabilizators.
Cross and horizontal iron made connections fasten main ladders of scaffolding. Platform and scaffolding high is adjustable each 30 cm.
Cover on the scaffolding enables worker to reach intended high safely. Extra safety bands or toeboard available upon request from the customer.
Bakalite hand bolts assist you to construct your scaffolding in at short notice. You can reach construction scheme by the doctument link above. Suitible for maintaince, repair and construction work of high ceilinged houses, external walls, showrooms, gas stations, fitness centers.
A (m.) | A1 (m.) | C (m.) | B (m.) * | (kg.) | D (cm.) ** | E (W.xL.xH./cm.) | F (W.xL.xH./cm.) | ||
S004 | 2x8 | 2,50 | 3,90 | 2,75 | 4,55 | 81,4 | 125-215x210 | 60x225x38 | 39x122x46 |
S005 | 2x10 | 3,05 | 4,95 | 3,83 | 5,63 | 91,0 | 125-215x210 | 60x280x38 | 39x122x46 |
S006 | 2x11 | 3,34 | 5,54 | 4,42 | 6,22 | 94,2 | 125-215x210 | 60x310x38 | 39x122x46 |
S007 | 2x13 | 3,87 | 6,35 | 5,23 | 7,03 | 100,6 | 145-235x210 | 60x360x38 | 39x148x46 |
S008 | 2x15 | 4,41 | 7,17 | 6,05 | 7,85 | 140,0 | 145-235x215 | 60x415x45 | 39x154x46 |
* Average safe height with User
** Stabilizer feet size (closed-open)
TECHNICAL DETAILS
- Maximum Load Capacity 186 Kg.
- Rung Dimensions: 30x30 mm.
- Beam Dimensions: 75x25 - (100x25 mm. - S008)
- Platform: 15 mm. Plywood Resistant to Outside Conditions.
