24C01 A 1K/2K/4K 5.0V I2C Serial EEPROMs
Ref: 2563
VCC.....7.0V
All inputs and outputs w.r.t. VSS ... -0.6V to VCC +1.0V
Storage temperature .....-65°C to +150°C
Ambient temp. with power applied ...-65°C to +125°C
Soldering temperature of leads (10 seconds) . +300°C
ESD protection on all pins....4 kV
More info
Learn more about this product:
Full description
EEPROM 128x8
FEATURES
• Low power CMOS technology
• Hardware write protect
• Two wire serial interface bus, I2C
compatible
• 5.0V only operation
• Self-timed write cycle (including auto-erase)
• Page-write buffer
• 1ms write cycle time for single byte
• 1,000,000 Erase/Write cycles guaranteed
• Data retention >200 years
• 8-pin DIP/SOIC packages
• Available for extended temperature ranges
DESCRIPTION
The Microchip Technology Inc. 24C01A/02A/04A is a
1K/2K/4K bit Electrically Erasable PROM. The device

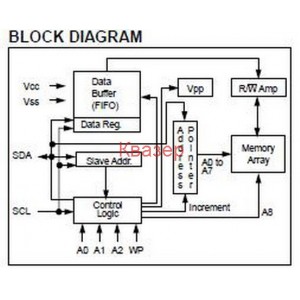

is organized as shown, with a standard two wire serial
interface. Advanced CMOS technology allows a significant
reduction in power over NMOS serial devices. A
special feature in the 24C02A and 24C04A provides
hardware write protection for the upper half of the block.
The 24C01A and 24C02A have a page write capability
of two bytes and the 24C04A has a page length of eight
bytes. Up to eight 24C01A or 24C02A devices and up
to four 24C04A devices may be connected to the same
two wire bus.
This device offers fast (1ms) byte write and
extended (-40
°C to 125
°C) temperature operation. It
is recommended that all other applications use
Microchip’s 24LCXXB.
- Commercial (C): 0°C to +70°C
- Industrial (I): -40°C to +85°C
- Automotive (E): -40°C to +125°C
