Full description

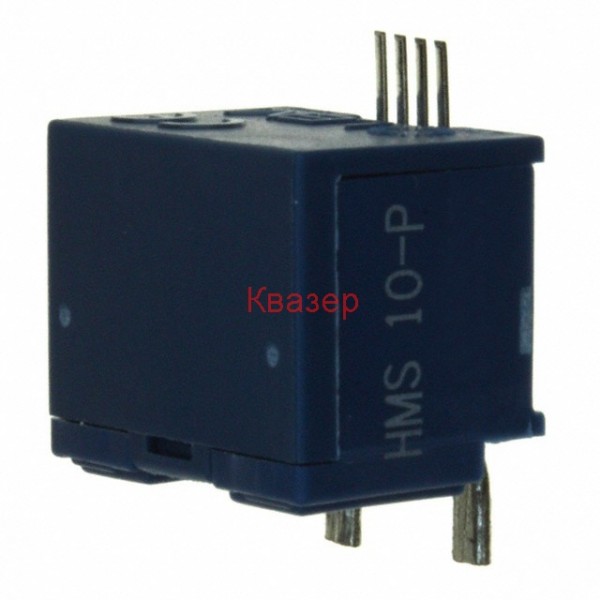

LEM HMS 10-P Series Open Loop AC/DC Hall Effect Sensor
Features

• Open loop multi-range current transducer
• Single supply +5 V
• Galvanic separation between primary and secondary circuit
• Low power consumption
• SMT PCB mounting
• Factory calibrated

Advantages

• Small Size and space saving
• Singe paclage for wide current ranges 5 -> 20 Amp
• High Immunity to external interference
• Low offset drift
• Over-drivable VREF

Applications

• AC variable speed and servo motor drives
• Static converters for DC motor drives
• Battery supplied applications
• Uninterruptible Power Supplies (UPS)
• Switched Mode Power Supplies (SMPS)
• Power supplies for welding applications

Standards

• IEC 61010-1
• EN50178

Application Domain

• Industrial
